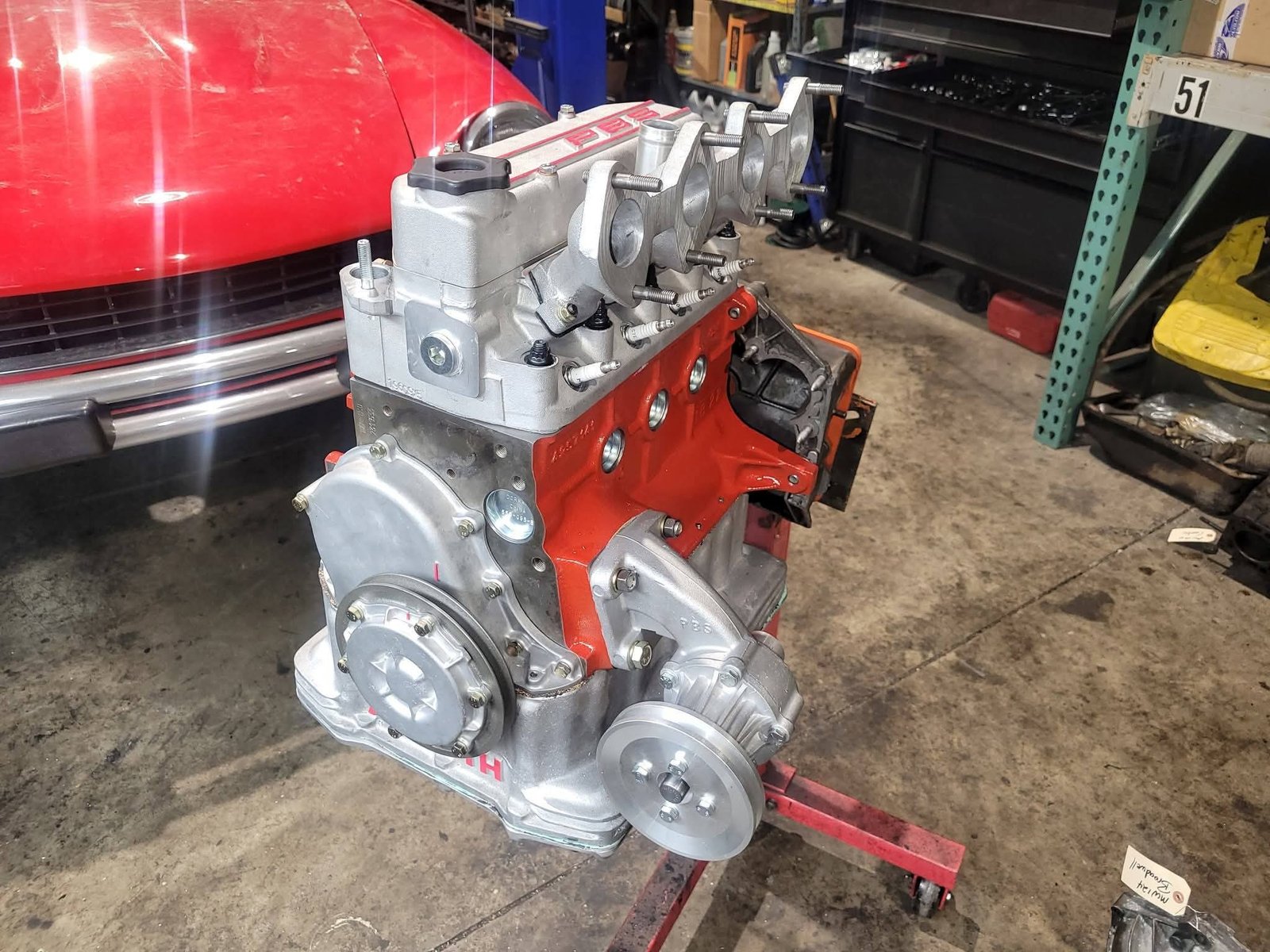

Fiat 850 Full Race Engine – Custom High-Performance Build

Available for sale: professionally built Fiat 850 race engine, developed for historic racing and serious performance applications. This engine features extensive internal modifications and premium motorsport components designed for maximum reliability, high RPM capability, and competitive historic racing performance.

Built on a 903cc Fiat block, this engine has been extensively reworked and upgraded with race-grade components throughout.

Engine Specification

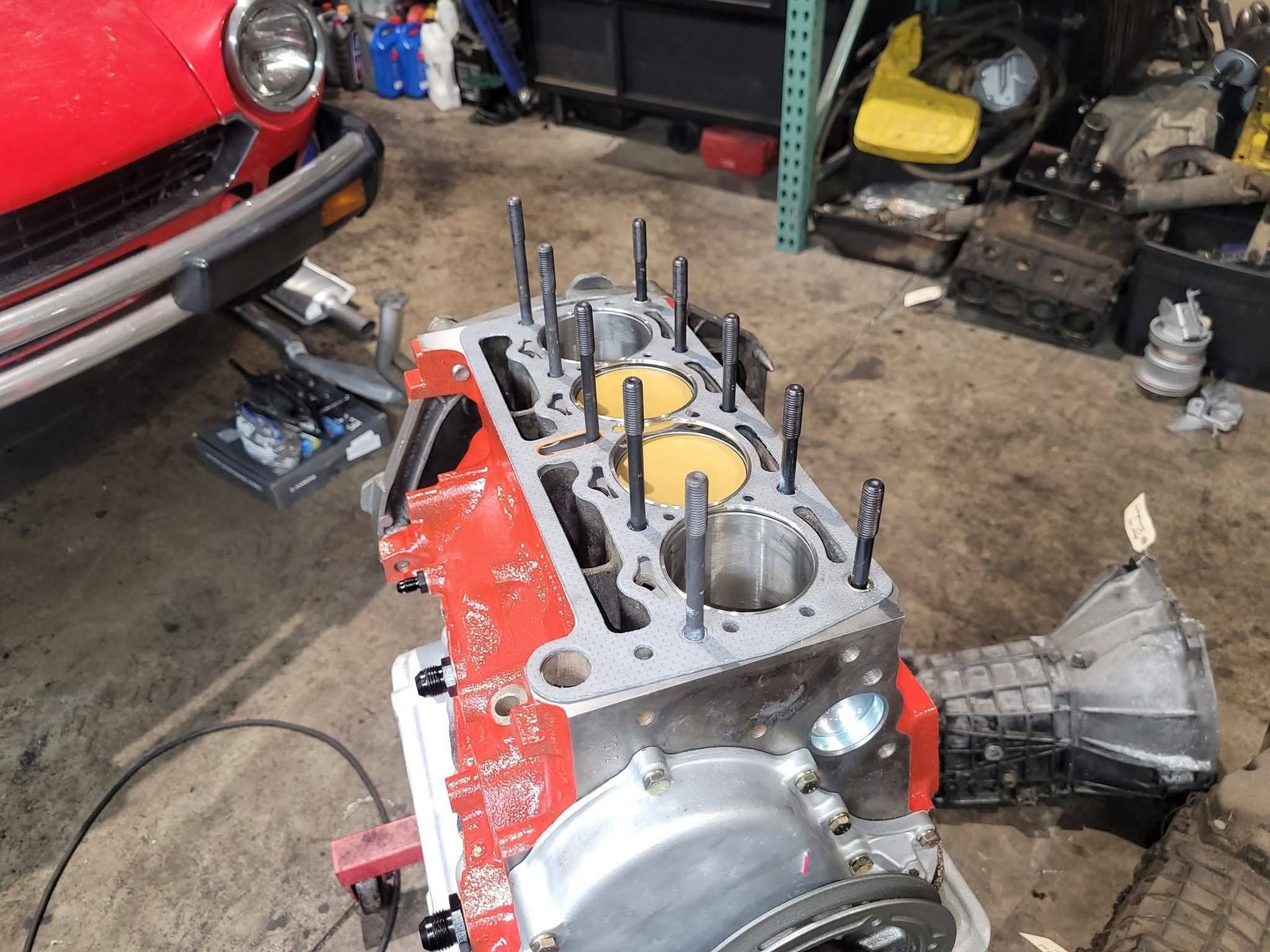

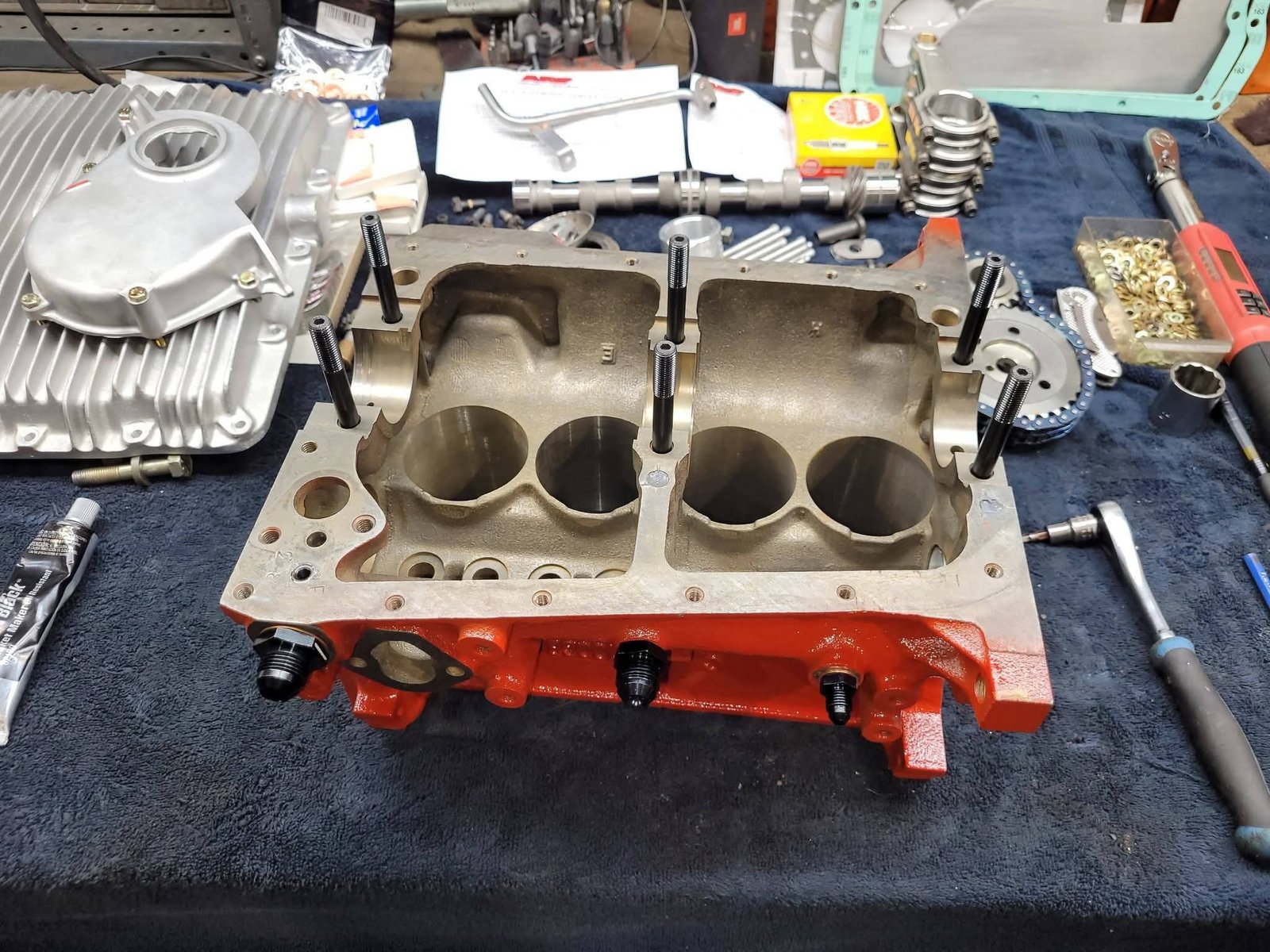

Block & Bottom End

Original 903cc Fiat block

67.5mm bore with custom forged Abarth A112-style pistons

Pistons feature ceramic thermal coating on crowns and dry-film friction-reducing coating on skirts

Cylinder bores offset to A112 centerline spacing

Cylinders #1 and #4 moved outward

Cylinders #2 and #3 moved inward

Crankshaft turned 0.010 under

Main caps secured with ARP studs and nuts

Front crank oil passage threaded and plugged

Oil System – Full Race Configuration

Modified original Fiat 850 oil pressure relief location

Fitted with -6 AN fitting for remote oil filter and Accusump system

Center oil gallery modified and tapped for -6 AN return line

Pressurized oil supply feeding center main journal and full engine oil circuit

Original oil pressure sender location converted to -4 AN braided line feed for mechanical gauge

A112-type oil pump with integrated pressure relief valve

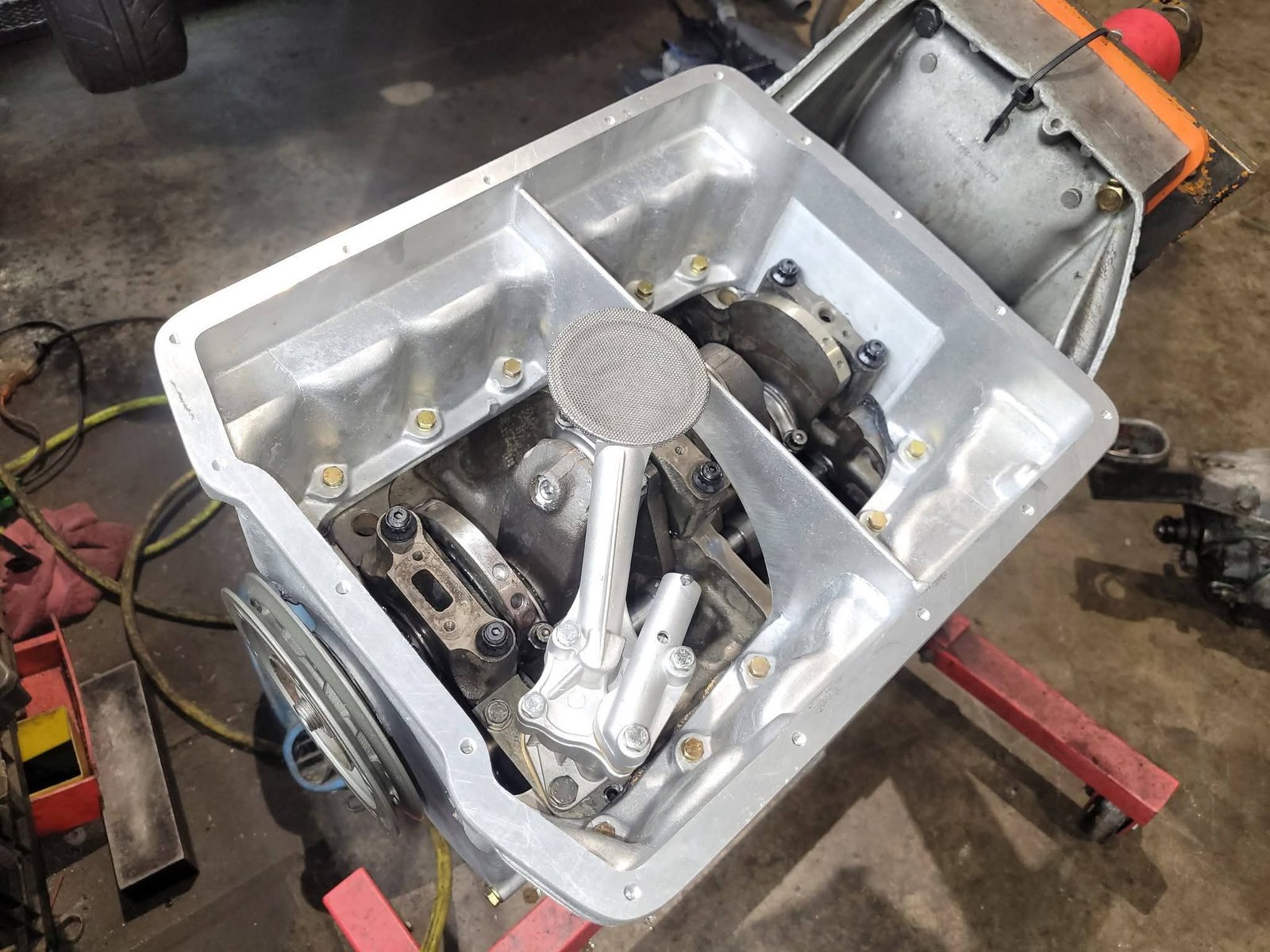

High-capacity 2-piece Abarth-style oil pan reproduction

Additional windage plate for improved oil control at high RPM

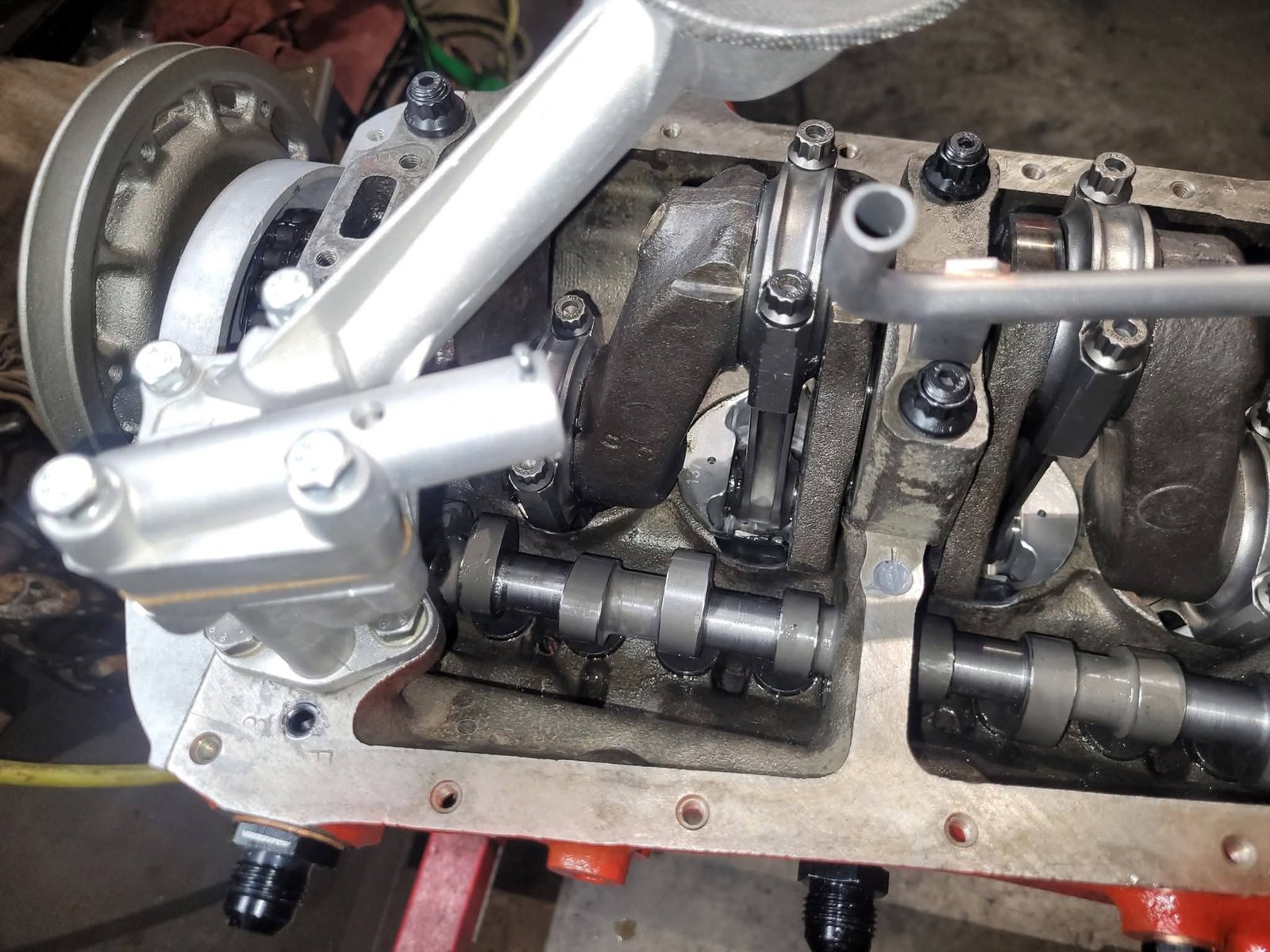

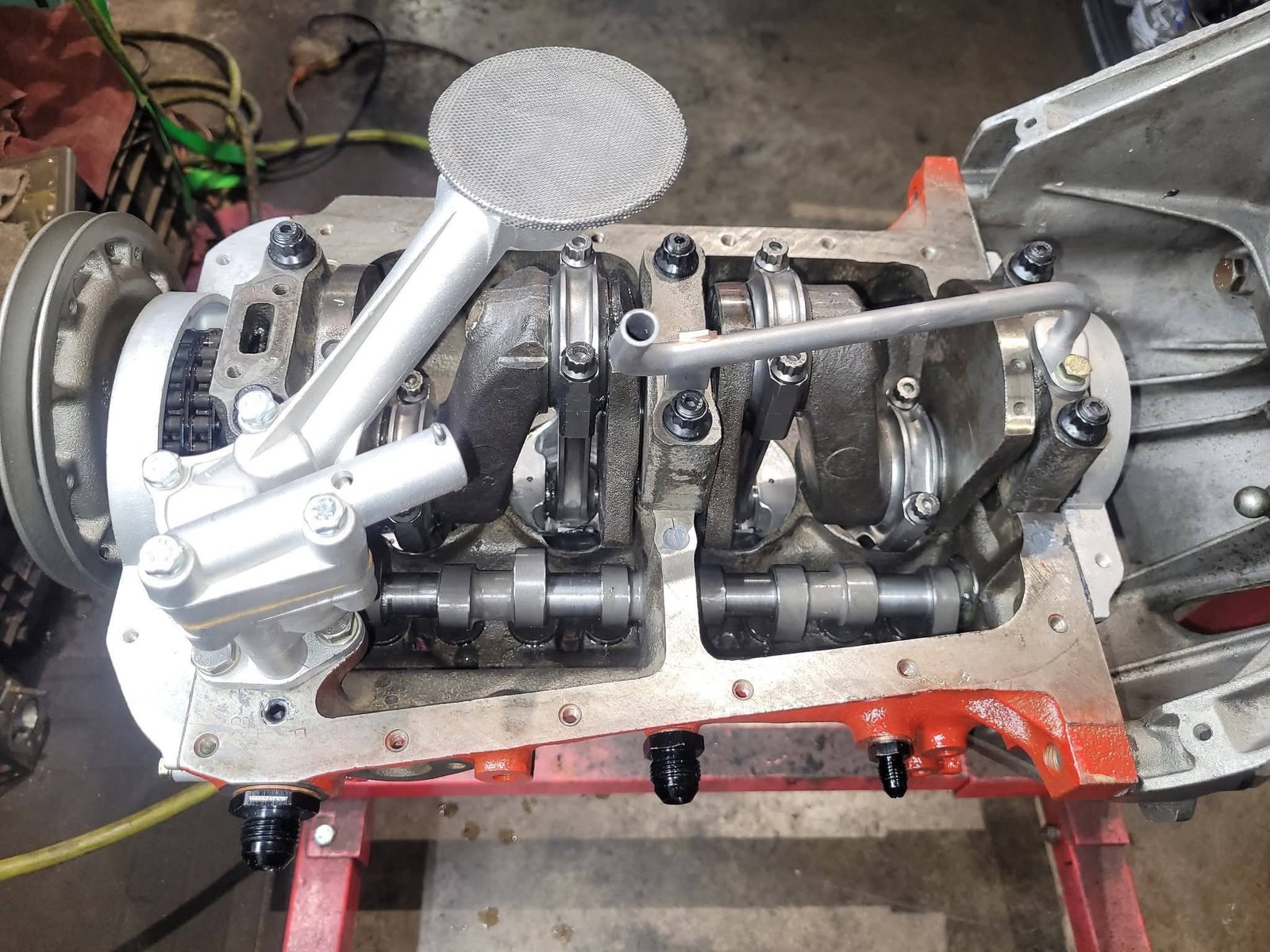

Rotating Assembly

Forged connecting rods with ARP rod bolts

Bottom of cylinder bores clearanced for rod movement

Lightweight billet steel flywheel (~5 lbs) for improved throttle response

Valve Train & Camshaft

Scuderia Topolino long-duration high-lift camshaft

New hardened DLC-coated tappets

Featherweight alloy pushrods

Chromed rocker shaft with grooved oil galleries

New hardened rocker arms with bronze bushings

Hardened lash caps with 8mm heads

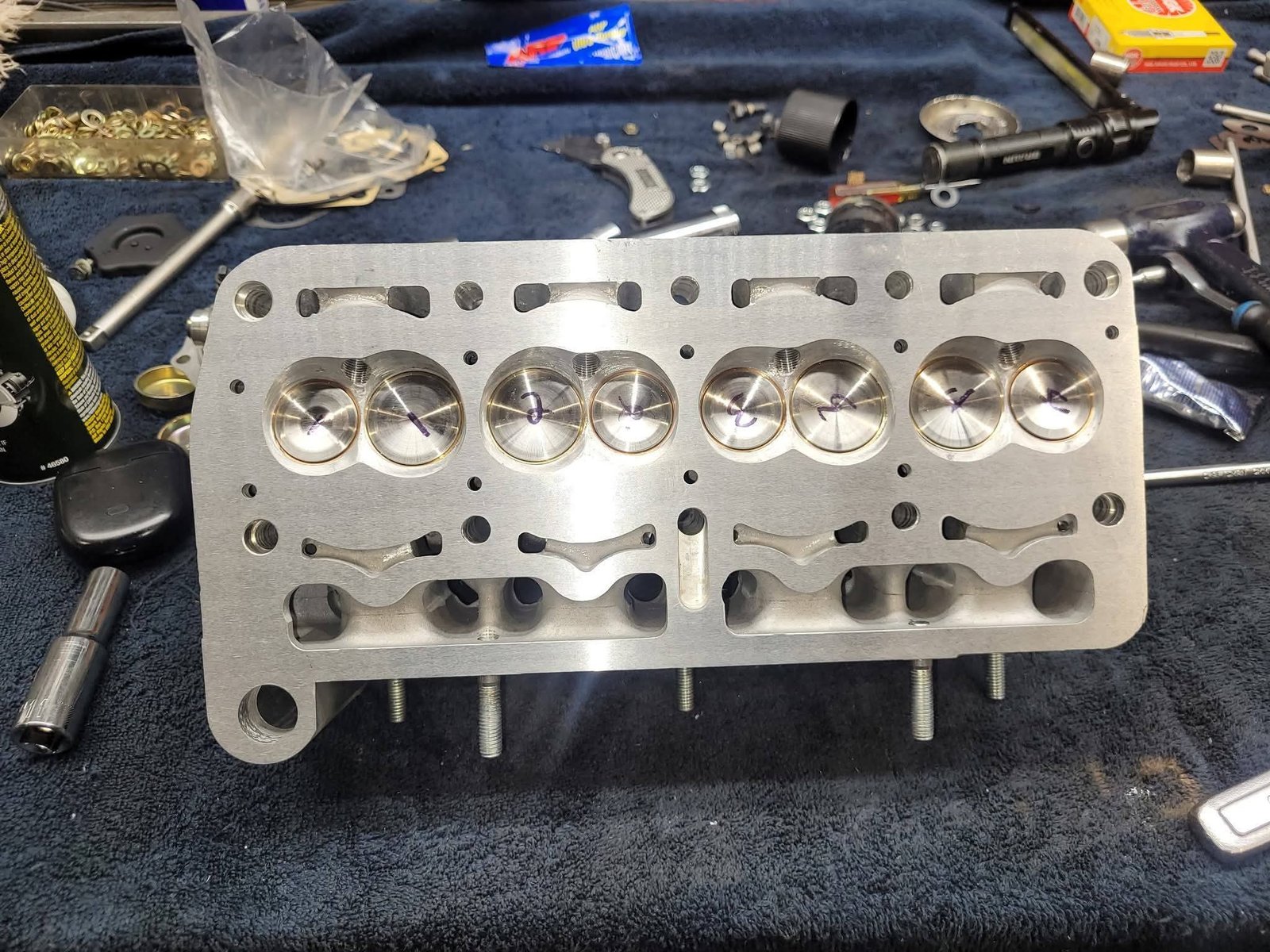

Cylinder Head

PBS Gen4 full race cylinder head

30mm intake / 28mm exhaust valves

5mm valve stems

Full CNC race porting

Head secured using ARP studs, washers and nuts

Induction & Ignition

Gen4 intake manifold

Designed to run twin Weber 40 DCOE 151 carburetors

123 Ignition programmable distributor system

Ideal Applications

Fiat 850 racing builds

Historic motorsport

Abarth-style competition builds

Classic rally and hill climb cars

High-end classic Fiat restoration projects

Additional Information

This engine represents a very serious custom racing build using high-quality components and motorsport engineering solutions developed for competitive historic racing.

Worldwide shipping available with tracking.

Import fees due prior to delivery.
